Weight of Seawater in a Pipe Calculator

Diameter (\( D \)):

Length (\( L \)):

Density (\( \mu_D \)):

1. What is Weight of Seawater in a Pipe Calculator?

Definition: This calculator computes the weight (\( m \)) of seawater inside a cylindrical pipe by calculating the volume based on the diameter (\( D \)) and length (\( L \)), then multiplying by the density (\( \mu_D \)).

Purpose: It helps engineers and marine professionals determine the weight of seawater in a pipe, useful for structural design, load calculations, and system planning in marine environments.

2. How Does the Calculator Work?

The calculator uses the following equation:

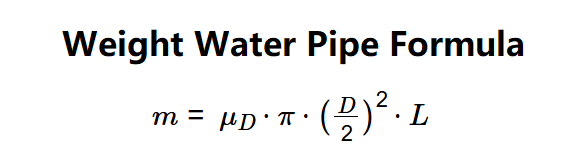

\( m = \mu_D \cdot \pi \cdot \left( \frac{D}{2} \right)^2 \cdot L \)

Where:

\( D \): Diameter of the pipe (in in, cm, or m);
\( L \): Length of the pipe (in ft, m, or cm);
\( \mu_D \): Density of seawater (in kg/m³, g/cm³, or lb/ft³, default is 1025 kg/m³);
\( m \): Weight of the seawater (in kg, lb, or g);
Results are displayed with 3 decimal places (or scientific notation if less than 0.001).

Steps:

Enter the diameter (\( D \)) of the pipe and select the unit (in, cm, m).
Enter the length (\( L \)) of the pipe and select the unit (ft, m, cm).
Enter the density (\( \mu_D \)) of seawater (default is 1025 kg/m³) and select the unit (kg/m³, g/cm³, lb/ft³).
Click "Calculate" to compute the weight.
Change the result unit dropdown to convert the weight to a different unit (kg, lb, g).

3. Importance of Weight of Seawater in a Pipe Calculation

Calculating the weight of seawater in a pipe is crucial for:

Marine Engineering: Ensures pipes and supports in marine environments can handle the weight of seawater, preventing structural failure.
System Planning: Helps in designing marine plumbing systems by accounting for the load of the fluid.
Safety Considerations: Prevents overloading in systems where pipes are used in offshore or underwater applications.

4. Using the Calculator

Example 1: Calculate the weight with \( D = 2 \, \text{in} \), \( L = 10 \, \text{ft} \), \( \mu_D = 1025 \, \text{kg/m³} \), result in kg:

Diameter: 2 in = 0.0508 m;
Length: 10 ft = 3.048 m;
Density: 1025 kg/m³;
\( m = 1025 \cdot \pi \cdot \left( \frac{0.0508}{2} \right)^2 \cdot 3.048 \);
\( m = 1025 \cdot \pi \cdot (0.0254)^2 \cdot 3.048 \approx 6.333 \, \text{kg} \);
Result: Weight = 6.333 kg.

Example 2: Calculate the weight with \( D = 5 \, \text{cm} \), \( L = 2 \, \text{m} \), \( \mu_D = 1.025 \, \text{g/cm³} \), result in lb:

Diameter: 5 cm = 0.05 m;
Length: 2 m;
Density: 1.025 g/cm³ = 1025 kg/m³;
\( m = 1025 \cdot \pi \cdot \left( \frac{0.05}{2} \right)^2 \cdot 2 \);
\( m = 1025 \cdot \pi \cdot (0.025)^2 \cdot 2 \approx 4.022 \, \text{kg} \);
Convert to lb: \( 4.022 \times 2.20462 \approx 8.867 \, \text{lb} \);
Result: Weight = 8.867 lb.

5. Frequently Asked Questions (FAQ)

Q: What is the Weight of Seawater in a Pipe?
A: It is the total weight of seawater inside a pipe, calculated based on the pipe’s internal volume and the density of seawater.

Q: Why is the default density 1025 kg/m³?
A: This is the typical density of seawater at standard conditions, accounting for salinity and temperature.

Q: Does this calculator account for the pipe’s weight?
A: No, this calculator only computes the weight of the seawater inside the pipe, not the pipe material itself.
