Pipe Flow Volume Calculator

1. What is Pipe Flow Volume Calculator?

Definition: This calculator computes the total volume (\( V \)) of fluid that flows through a pipe by multiplying the flow rate (\( fr \)) by the duration (\( d \)) of the flow.

Purpose: It helps engineers, plumbers, and researchers determine the total amount of fluid delivered over a period, useful in applications like plumbing, irrigation, and fluid management.

2. How Does the Calculator Work?

The calculator uses the following equation:

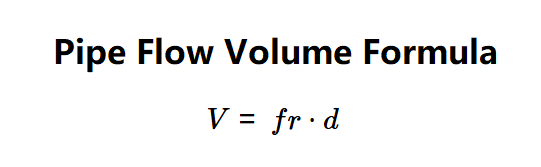

\( V = fr \cdot d \)

Where:

\( fr \): Flow rate (in gal/min, L/s, m³/hr, or ft³/min);
\( d \): Duration of the flow (in min, hr, or s);
\( V \): Total volume (in gal, L, m³, or ft³);
Results are displayed with 3 decimal places (or scientific notation if less than 0.001).

Steps:

Enter the flow rate (\( fr \)) and select the unit (gal/min, L/s, m³/hr, ft³/min).
Enter the duration (\( d \)) and select the unit (min, hr, s).
Click "Calculate" to compute the total volume.
Change the result unit dropdown to convert the volume to a different unit (gal, L, m³, ft³).

3. Importance of Pipe Flow Volume Calculation

Calculating pipe flow volume is crucial for:

Fluid Management: Determines the total amount of fluid delivered, essential for water supply, irrigation, or industrial processes.
System Monitoring: Helps in tracking and managing fluid usage over time in plumbing or HVAC systems.
Design and Planning: Assists in designing systems to handle specific volumes of fluid over given periods.

4. Using the Calculator

Example 1: Calculate the volume with \( fr = 10 \, \text{gal/min} \), \( d = 10 \, \text{min} \), result in gal:

Flow Rate: 10 gal/min;
Duration: 10 min;
\( V = 10 \times 10 = 100 \, \text{gal} \);
Result: Total Volume = 100.000 gal.

Example 2: Calculate the volume with \( fr = 2 \, \text{L/s} \), \( d = 1 \, \text{hr} \), result in m³:

Flow Rate: 2 L/s = \( 2 \times 15.8503 = 31.7006 \, \text{gal/min} \);
Duration: 1 hr = 60 min;
\( V = 31.7006 \times 60 = 1902.036 \, \text{gal} \);
Convert to m³: \( 1902.036 \times 0.00378541 \approx 7.200 \, \text{m³} \);
Result: Total Volume = 7.200 m³.

5. Frequently Asked Questions (FAQ)

Q: What is Pipe Flow Volume?
A: Pipe flow volume is the total amount of fluid that flows through a pipe over a given duration, calculated by multiplying the flow rate by the duration.

Q: Why is calculating pipe flow volume important?
A: It helps in managing fluid delivery, ensuring systems can handle the required volume, and monitoring usage in various applications.

Q: Can I use this calculator for any fluid?
A: Yes, the calculator works for any fluid as long as you know the flow rate and duration, assuming steady and uniform flow.
