Pipe Coating Amount Calculator

Diameter (\( d \)):

Length (\( l \)):

Thickness (\( t \)):

Number of Pipes (\( n \)):

1. What is Pipe Coating Amount Calculator?

Definition: This calculator computes the volume (\( V \)) of coating material needed for one or more cylindrical pipes by calculating the lateral surface area (based on diameter \( d \) and length \( l \)), multiplying by the coating thickness (\( t \)), and then by the number of pipes (\( n \)).

Purpose: It helps engineers and contractors determine the amount of coating material required to cover pipes, useful for budgeting, planning, and applying protective layers.

2. How Does the Calculator Work?

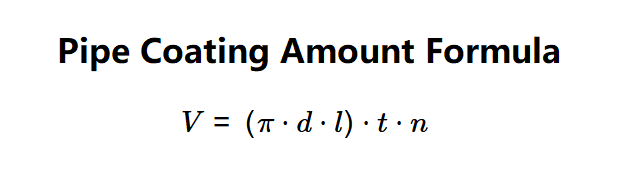

The calculator uses the following equation:

\( V = (\pi \cdot d \cdot l) \cdot t \cdot n \)

Where:

\( d \): Diameter of the pipe (in in, cm, or m);
\( l \): Length of the pipe (in ft, m, or cm);
\( t \): Thickness of the coating (in mil, mm, or in);
\( n \): Number of pipes;
\( V \): Volume of coating material (in in³, cm³, m³, or ft³);
Results are displayed with 3 decimal places (or scientific notation if less than 0.001).

Steps:

Enter the diameter (\( d \)) of the pipe and select the unit (in, cm, m).
Enter the length (\( l \)) of the pipe and select the unit (ft, m, cm).
Enter the thickness (\( t \)) of the coating and select the unit (mil, mm, in).
Enter the number of pipes (\( n \)).
Click "Calculate" to compute the coating volume.
Change the result unit dropdown to convert the volume to a different unit (in³, cm³, m³, ft³).

3. Importance of Pipe Coating Amount Calculation

Calculating the pipe coating amount is crucial for:

Material Estimation: Ensures accurate estimation of coating material needed, preventing shortages or excess.
Cost Planning: Helps in budgeting for coating projects by determining the volume of material required.
Protection and Maintenance: Assists in applying the correct thickness of coating to protect pipes from corrosion or environmental damage.

4. Using the Calculator

Example 1: Calculate the coating volume with \( d = 2 \, \text{in} \), \( l = 10 \, \text{ft} \), \( t = 1 \, \text{mil} \), \( n = 1 \), result in in³:

Diameter: 2 in = 0.0508 m;
Length: 10 ft = 3.048 m;
Thickness: 1 mil = 0.0000254 m;
Number of Pipes: 1;
\( V = (\pi \cdot 0.0508 \cdot 3.048) \cdot 0.0000254 \cdot 1 \approx 0.0123 \, \text{m³} \);
Convert to in³: \( 0.0123 \div (0.0254 \times 0.0254 \times 0.0254) \approx 753.968 \, \text{in³} \);
Result: Coating Volume = 753.968 in³.

Example 2: Calculate the coating volume with \( d = 5 \, \text{cm} \), \( l = 2 \, \text{m} \), \( t = 1 \, \text{mm} \), \( n = 2 \), result in cm³:

Diameter: 5 cm = 0.05 m;
Length: 2 m;
Thickness: 1 mm = 0.001 m;
Number of Pipes: 2;
\( V = (\pi \cdot 0.05 \cdot 2) \cdot 0.001 \cdot 2 \approx 0.000628 \, \text{m³} \);
Convert to cm³: \( 0.000628 \times 1000000 = 628.319 \, \text{cm³} \);
Result: Coating Volume = 628.319 cm³.

5. Frequently Asked Questions (FAQ)

Q: What is Pipe Coating Amount?
A: It is the volume of coating material needed to cover the lateral surface of one or more cylindrical pipes, calculated based on the surface area, coating thickness, and number of pipes.

Q: Does this calculator include the ends of the pipe?
A: No, this calculator computes the coating volume for the lateral surface area only, not the circular end caps.

Q: Why is coating thickness important?
A: The thickness determines the volume of coating material needed per unit area, affecting both the protective quality and the total amount of material required.
