Elliptic Pipe to Round Pipe Calculator

Diameter 1 (\( a \)):

Diameter 2 (\( b \)):

Equivalent Round Pipe Diameter (\( d \)):

Equivalent Round Pipe Radius (\( r \)):

Equivalent Round Pipe Circumference (\( C \)):

1. What is Elliptic Pipe to Round Pipe Calculator?

Definition: This calculator computes the equivalent round pipe diameter (\( d \)), radius (\( r \)), and circumference (\( C \)) for an elliptic pipe, based on its two diameters (\( a \) and \( b \)).

Purpose: It assists engineers in converting the dimensions of an elliptic pipe to an equivalent round pipe, providing additional geometric properties for hydraulic calculations and pipe design.

2. How Does the Calculator Work?

The calculator uses the following equations:

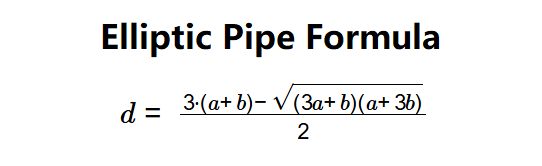

\( d = \frac{3 \cdot (a + b) - \sqrt{(3a + b)(a + 3b)}}{2} \)
\( r = \frac{d}{2} \)
\( C = \pi \cdot d \)

Where:

\( a \): Diameter 1 of the elliptic pipe (in mm, cm, m, in, ft, or yd);
\( b \): Diameter 2 of the elliptic pipe (in mm, cm, m, in, ft, or yd);
\( d \): Equivalent round pipe diameter (in mm, cm, m, in, ft, or yd);
\( r \): Equivalent round pipe radius (in mm, cm, m, in, ft, or yd);
\( C \): Equivalent round pipe circumference (in mm, cm, m, in, ft, or yd);
Results are displayed with 3 decimal places (or scientific notation if less than 0.001).

Steps:

Enter Diameter 1 (\( a \)) and select the unit (mm, cm, m, in, ft, yd).
Enter Diameter 2 (\( b \)) and select the unit (mm, cm, m, in, ft, yd).
Click "Calculate" to compute the equivalent round pipe diameter, radius, and circumference.
Change the result unit dropdowns to convert each result to a different unit.

3. Importance of Elliptic Pipe to Round Pipe Conversion

Converting elliptic pipe dimensions to an equivalent round pipe is crucial for:

Hydraulic Engineering: Simplifying flow calculations by using standard round pipe formulas.
Pipe Design: Standardizing pipe specifications for manufacturing or replacement, with additional geometric data like radius and circumference.
Construction Projects: Ensuring compatibility between different pipe shapes in drainage or irrigation systems.

4. Using the Calculator

Example 1: Calculate the equivalent round pipe properties with \( a = 2 \, \text{in} \), \( b = 1 \, \text{in} \), results in in:

Diameter 1: 2 in;
Diameter 2: 1 in;
\( d = \frac{3 \cdot (2 + 1) - \sqrt{(3 \cdot 2 + 1)(2 + 3 \cdot 1)}}{2} \);
\( d = \frac{3 \cdot 3 - \sqrt{(6 + 1)(2 + 3)}}{2} = \frac{9 - \sqrt{7 \cdot 5}}{2} = \frac{9 - \sqrt{35}}{2} \approx \frac{9 - 5.916}{2} \approx 1.542 \, \text{in} \);
\( r = \frac{1.542}{2} \approx 0.771 \, \text{in} \);
\( C = \pi \cdot 1.542 \approx 3.1416 \cdot 1.542 \approx 4.844 \, \text{in} \);
Result: Equivalent Round Pipe Diameter = 1.542 in, Radius = 0.771 in, Circumference = 4.844 in.

Example 2: Calculate the equivalent round pipe properties with \( a = 50 \, \text{mm} \), \( b = 30 \, \text{mm} \), results in cm:

Diameter 1: 50 mm = \( 50 \times 0.0393701 = 1.969 \, \text{in} \);
Diameter 2: 30 mm = \( 30 \times 0.0393701 = 1.181 \, \text{in} \);
\( d = \frac{3 \cdot (1.969 + 1.181) - \sqrt{(3 \cdot 1.969 + 1.181)(1.969 + 3 \cdot 1.181)}}{2} \);
\( d \approx \frac{3 \cdot 3.15 - \sqrt{(5.907 + 1.181)(1.969 + 3.543)}}{2} \approx \frac{9.45 - \sqrt{7.088 \cdot 5.512}}{2} \approx \frac{9.45 - 6.252}{2} \approx 1.599 \, \text{in} \);
\( r = \frac{1.599}{2} \approx 0.800 \, \text{in} \);
\( C = \pi \cdot 1.599 \approx 3.1416 \cdot 1.599 \approx 5.023 \, \text{in} \);
Convert to cm: \( d = 1.599 \times 2.54 \approx 4.062 \, \text{cm} \), \( r = 0.800 \times 2.54 \approx 2.032 \, \text{cm} \), \( C = 5.023 \times 2.54 \approx 12.758 \, \text{cm} \);
Result: Equivalent Round Pipe Diameter = 4.062 cm, Radius = 2.032 cm, Circumference = 12.758 cm.

5. Frequently Asked Questions (FAQ)

Q: What is an Elliptic Pipe to Round Pipe Conversion?
A: It calculates the diameter, radius, and circumference of a round pipe that would have the same hydraulic properties as an elliptic pipe with given diameters.

Q: Why convert an elliptic pipe to a round pipe?
A: Round pipes are often easier to analyze using standard hydraulic formulas, and knowing the radius and circumference can aid in further design calculations.

Q: Can the result units be different for diameter, radius, and circumference?
A: Yes, the calculator provides separate unit dropdowns for each result, allowing independent unit conversions.
